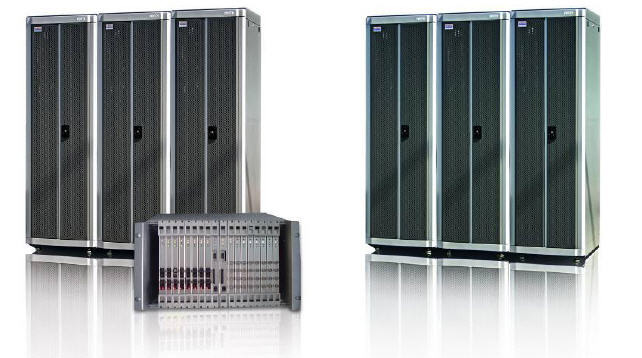

Forth IP 3000 Enterprise PABX
High Technology ...
IP 3000 PBX is designed with the latest technology using RISC CPU 32 bits, FPGA and DSP array to process voice data. IP 3000 can effectivey suport up to 3,840 ports in one system. IP 3000's Voice Processing enables (OGM, Voicemail & IVR) up to 512 calls simultaneously. IP 3000 can also support High Speed Internet Broadband ADSL 2+ within its cabinet. VOIP network connection can also be connected between nodes. The IP 3000 also supports IP networking which is very ideal for Clal Centers and big buildings.
High Reliability .....
IP 3000 is designed to be "Hot Swappable" , meaning when system cards needed to be changed or serviced, there is no need to shut down the system. Most cards can be plugged and unplugged during normal operation. Additional CPU can also be added to produce a redundant system.
Advance Voice Processing ....
The IP 3000 uses Voice Processing cards to support 32 lines per card and it can be increased up to 512 lines. Multiple OGM ( Outoig Messages) , Voice Mail , Audio Text with over 500 menus and multiple language choices.
With high speed chipsets data transfer is done "live" , no data compression is done to maintain the quality of the voice. Rhe cal record can be kept in a CF memory card, capacity is about 36 hours per 1 gig.

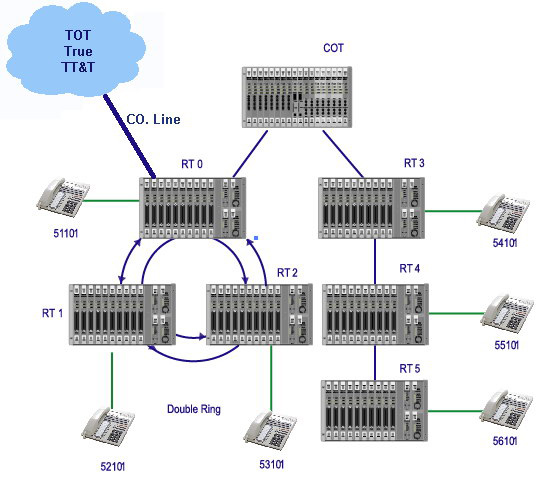

Fiber Optics Linking ....

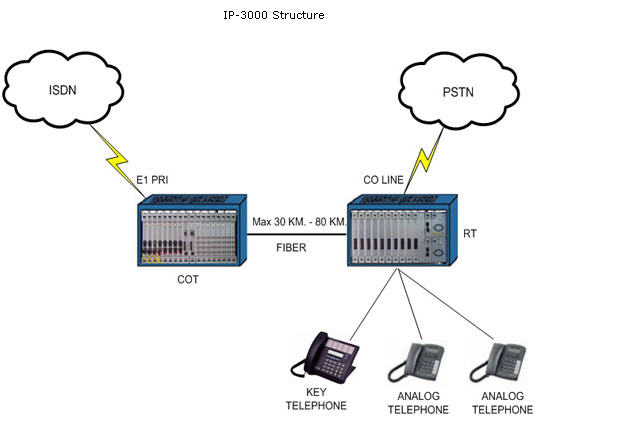

The IP 3000 can be klinked together with fiber optics, cabling cost would be cheaper and quality wuold be better. Link is COT and 16 RT within 30 - 80 kms radius (Dual Ring mode), the whole link will now be working as one non blocking system.
IP Interconnectivity ....
The IP 3000 connects to the internet through its IP trunck card. The card will convert voice into data and transfer over the internet (VOIP). The system also supports SIP, H.248 used with any IP phone. The IP card is compatible with most codec eg. G.711 , G.723 , G.729 and many more voice enhancement feature, such as T.38 Fax, Echo Cancellation and CNG.
|
Auto answer, 32 channels/card , max. 512 channels
|
|
Available per extension / local
|
|
Supports all language, Voice data transfer from PC
|
|
15 line conference with 5 groups
|
|
Available per extension / local
|
|
Can use 4 diferent companies with 4 different OGM
|
|
Available for CO lines and Extension No.
|
|
|
|
Most boards can be replaced without system shutdown
|
|
|
|
20 levels of outgoing calls
|
|
|
|
Available per extension / local
|
|
2 Power Supply , 2 CPU and 2 Fiber Link
|
|
Supports Prepaid Service, Account & Class Monitoring
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32 Channels / card ( Max.= 512 channels)
|
|
|
|
|
|
|
|
|
|
|
|
G.711, G.723.1 , G.727, SM Full linear 16
|
|
|
|
|
