เครื่องบันทึก HIKVISION ,H.265+ (Turbo HD 4.0) Turbo HD DVR Series รุ่น
DS-7104HQHI-K1 จำนวน 4CH.

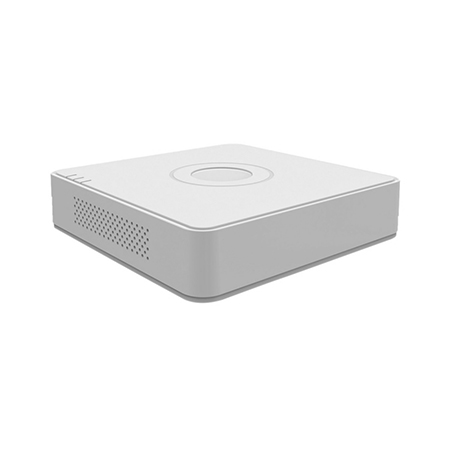

DS-7104HQHI-K1 Turbo HD DVR
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 4 MP lite resolution for recording
• Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
• 4/8/16-ch synchronous playback
DS-7104HQHI-K1
Video/Audio Input |
Audio Input: |
|
1-ch |
Video Compression: |
|
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Analog and HD-TVI video input: |
|
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types: |
|
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input |
Video Input Interface: |
|
BNC (1.0 Vp-p, 75Ω) |
Audio Compression: |
|
G.711u |
Audio Input Interface: |
|
RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio: |
|
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output |
HDMI/VGA Output: |
|
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution: |
|
When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
Frame Rate: |
|
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps;
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video Bit Rate: |
|
32 Kbps-6 Mbps |
Stream Type: |
|
Video/Video&Audio |
Audio Output: |
|
1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: |
|
64kbps |
Dual Stream: |
|
Support |
Synchronous Playback: |
|
4-ch |
Network management |
Remote connections: |
|
32 |
Network protocols: |
|
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF |
Hard Disk Driver |
Interface Type: |
|
1 SATA Interface |
Capacity: |
|
Up to 4TB capacity for each disk |
External Interface |
Network Interface: |
|
1; 10M / 100M self-adaptive Ethernet interface |
USB Interface: |
|
2 USB 2.0 Interfaces |
General |
Power Supply: |
|
12V DC |
Consumption: |
|
≤ 8W(without hard disks) |
Working Temperature: |
|
-10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity: |
|
10% ~ 90% |
Chassis: |
|
Mini 1U chassis |
Dimensions: |
|
200 × 200 × 45 mm
(7.9 × 7.9 × 1.8 inch) |
Weight: |
|
≤ 1 kg (2.2 lb) |
|
