เครื่องบันทึก HIKVISION ,H.264 (Turbo HD 3.0) Turbo HD DVR Series รุ่น
DS-7304HQHI-F4/N จำนวน 4CH.

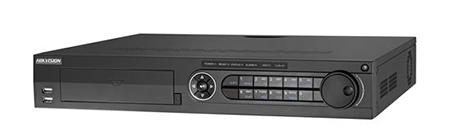

DS-7304HQHI-F4/N Turbo HD DVR
• H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, IPC,AHD and analog cameras with adaptive access
• Support Cloud storage(One Drive, Google Drive or Drop Box)
• Up to 3 MP resolution for recording of the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N
• VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution
• Long transmission distance over coax cable
• Up to 4/8/16-ch synchronous playback at 1080p resolution
• playback at up to 256X speed.
• Support POS functions.
DS-7304HQHI-F4/N
Video/Audio Input |
Audio Input: |
|
4-ch |
Video Compression: |
|
H.264,H.264+ |
Analog and HD-TVI video input: |
|
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types: |
|
Support HDTVI input: 3MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input |
Video Input Interface: |
|
BNC (1.0 Vp-p, 75Ω) |
Audio Compression: |
|
G.711u |
Audio Input Interface: |
|
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio: |
|
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output |
CVBS Output: |
|
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output: |
|
HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
Recording resolution: |
|
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
Frame Rate: |
|
Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video Bit Rate: |
|
32 Kbps-6 Mbps |
Stream Type: |
|
Video/Video&Audio |
Two-way Audio: |
|
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output: |
|
1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: |
|
64kbps |
Dual Stream: |
|
Support |
Playback Resolution: |
|
3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback: |
|
4-ch |
Network management |
Remote connections: |
|
128 |
Network protocols: |
|
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
Hard Disk Driver |
Interface Type: |
|
4 SATA Interfaces |
Capacity: |
|
Up to 6 TB capacity for each disk |
External Interface |
Network Interface: |
|
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface: |
|
2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
Alarm Input: |
|
16-ch |
Alarm Output: |
|
4-ch |
General |
Power Supply: |
|
100 to 240 VAC |
Consumption: |
|
≤ 30W(without hard disks) |
Working Temperature: |
|
-10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity: |
|
10% ~ 90% |
Dimensions: |
|
445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) |
Weight: |
|
≤ 5 kg (11.0lb) |
