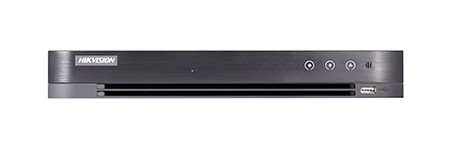

เครื่องบันทึก HIKVISION ,H.265+ (Turbo HD 4.0) Turbo HD DVR Series Built-in PoC รุ่น iDS-7204HUHI-K1/4S จำนวน 4CH.
iDS-7204HUHI-K1/4S TURBO HD DVR
• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false alarm, supports 4-ch detection
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• 8 MP/5 MP/4 MP HDTVI video input and live view for iDS-7208HUHI-K1/4S, and 5 MP/4 MP for iDS-7204HUHI-K1/4S
iDS-7204HUHI-K1/4S
Video/Audio Input |
Audio Input: |
|
4-ch |
Video Compression: |
|
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Analog Video Input: |
|
4-ch |
Supported camera types: |
|
HDTVI input :5 MP, 4 MP, 3 MP, 1080p30, 1080p25,
720p60, 720p50, 720p30, 720p25
AHD input :5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input :4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input :PAL/NTSC |
IP Video Input: |
|
up to 8-ch |
Video Input Interface: |
|
BNC (1.0 Vp-p, 75Ω) |
Audio Compression: |
|
G.711u |
Audio Input Interface: |
|
RCA (2.0 Vp-p, 1 kΩ) |
Video/Audio Output |
CVBS Output: |
|
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI/VGA Output: |
|
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution: |
|
5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame Rate: |
|
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N) |
Stream Type: |
|
Video/Video&Audio |
Audio Output: |
|
1-ch RCA(Linear, 1kΩ) |
Synchronous Playback: |
|
4-ch |
Network management |
Remote connections: |
|
32 |
Network protocols: |
|
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF |
Hard Disk Driver |
Interface Type: |
|
1 SATA Interface |
Capacity: |
|
Up to 10 TB capacity for each disk |
External Interface |
Network Interface: |
|
1 RJ45 10M/100M adaptive Ethernet Interface |
USB Interface: |
|
2 USB 2.0 Interfaces |
Serial Interface: |
|
1; standard RS-485 serial interface, half-duplex |
Alarm Input: |
|
4-ch |
Alarm Output: |
|
1-ch |
General |
Power Supply: |
|
12 VDC |
Consumption: |
|
≤ 10 W |
Working Temperature: |
|
-10 ºC to +55 ºC (+14 ºF to +131 ºF) |
Working Humidity: |
|
10% to 90% |
Dimensions: |
|
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Weight: |
|
≤ 1.16 kg (2.6 lb) |
|
